18 Note Music Box On/Off Side Lever

This Side Lever On/Off Assembly is designed for use with standard 18-note wind-up music movements. Ideal for mounting in music boxes, display bases, or custom enclosures, the lever allows you to easily control playback with a simple slide motion. Perfect for adding functional charm to your musical project or replacement part needs.

Installation Instructions (into an existing 18 note music movement):

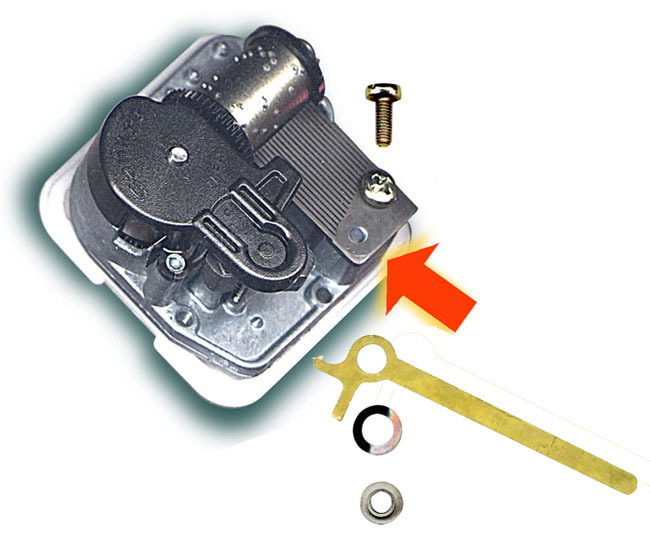

1. Remove ONE screw only (as indicated by the image below)

2. Place new screw provided through the hole in the On/Off Lever (as shown below).

Next, place the bent Spring Washer onto the Screw followed by the flat washer. Place Screw into Screw hole & tighten securely.

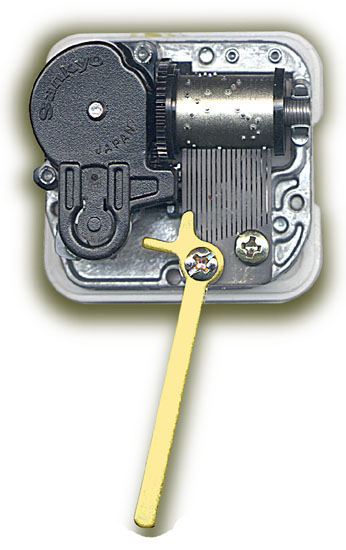

3. The top view of the properly installed On/Off Lever (as shown below). The Lever should fit snugly to the mechanism but still move freely. When the lever is swung to the left, the movement will stop playing.

Please note, the 18 note music movement is sold seperately. The images above are for representation purposes only.
