High Torque Euroshaft Sweep Clock Movement (22mm Shaft)

SKU: 20033644


$90.00
In Stock - Only 1 Left!

Finance Options:

Make 4 interest-free payments of $22.50 fortnightly and receive your order now.
Guaranteed Safe and Secure Checkout

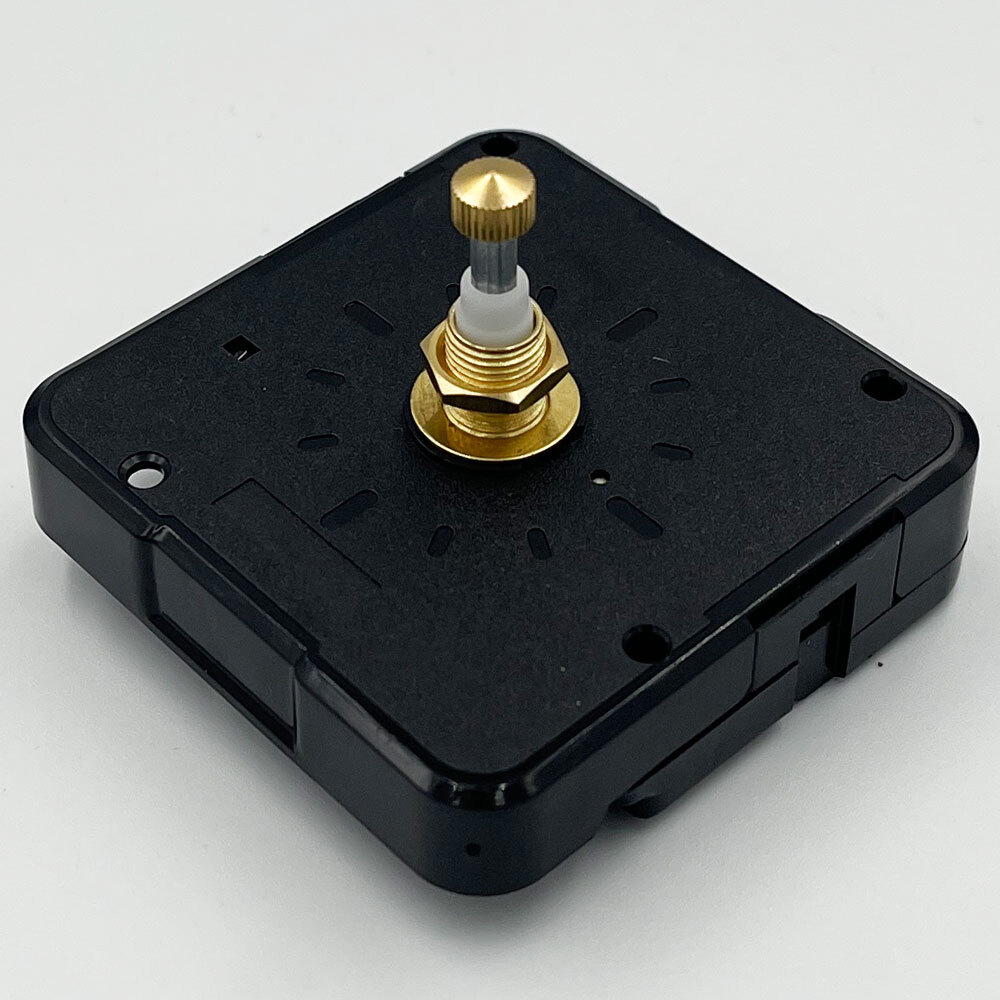

Euroshaft High Torque Quartz Clock Movement With Fittings

This Euroshaft quartz clock movement features a sweeping (non-ticking) high torque movement with all necessary fittings to assemble. Please read all of the information in the description below carefully to ensure the movement will be an appropriate fit prior to purchasing.

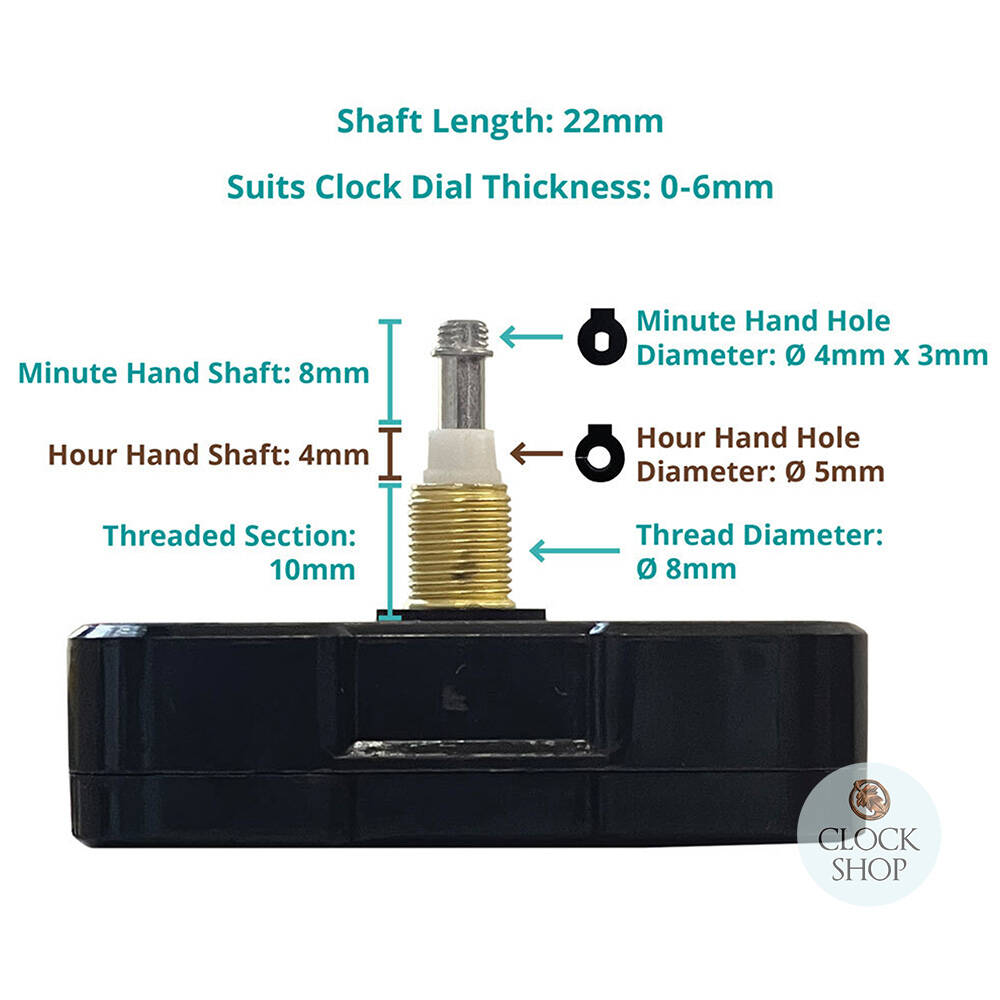

The movement has a total shaft length of 22mm and is compatible with clocks that have a dial thickness between 0-6mm.


Important note: This is a high torque movement, which is suitable for larger clocks with minute hands that weigh over 8 grams in weight, or which measure over 160mm in length. The high torque movement works by providing extra power to drive the larger sized hands around the clock. If your minute hand weighs less than 8 grams, or measures under 160mm in length, it may be more suitable to purchase a standard compatible movement instead.

Hands are NOT included by default with this movement, however we do have compatible euroshaft high torque hands which are available to purchase seperately HERE.



What Is The Difference Between Euroshaft Movements? (Standard, Takane & German UTS)

The main difference between a standard Euroshaft movement (which also includes Takane Euroshaft movements) and German made UTS movements are the dimensions of the minute shaft, which correlate to slightly different hand hole (collet) dimensions in the minute hand. This is applicable for both regular Euroshaft movements, and high torque Euroshaft movements. In German UTS Euroshaft movements, the minute hand dimensions are slightly smaller (3.5mm x 2.8mm), as opposed to a standard or Takane Euroshaft movement (4mm x 3mm). The hour hand dimensions are the same across the different Euroshaft movement types that we supply.

In addition, a German UTS Euroshaft movement uses a collar to secure the movement to a clock (which requires a slightly larger dial hole and thickness), whilst a standard Euroshaft movement instead uses a hex nut and a brass thread. For these reasons, it is important to measure your existing hand hole dimensions, the diameter of your dial hole, and the dial thickness prior to purchasing, to ensure the movement will be a suitable replacement. There are instructions on how to obtain this information further below in the description.



Supplied With:

1 x Euroshaft high torque quartz sweep movement (22mm shaft length, suits clocks with a dial thickness 0-6mm)

Euroshaft fit (Hour hand pushes on, minute hand fits onto a slotted rectangular shaft and is held on by a small nut)

Sweep movement (seconds hand sweeps continuously around the dial without ticking)

Movement measures 55 x 55 x 16mm (not including shaft length)

1 x Pack of fittings (metal washer, hex nut & closed minute hand nut)

1 x Assembly instructions

Requires a dial hole diameter with a minimum of 8mm

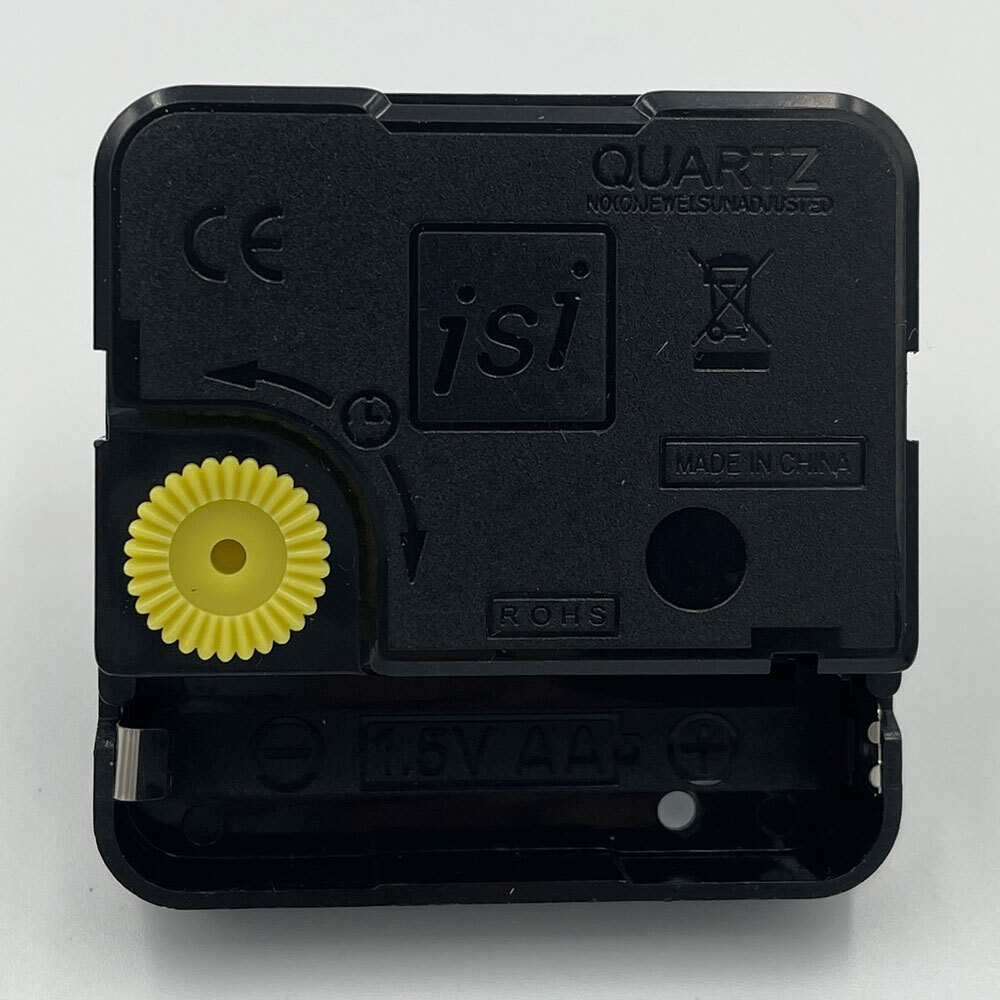

Requires 1 x AA Alkaline battery (or LR6 Alkaline), not included

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.



Hand Hole Dimensions (Collet)

  • Minute: 4x3mm
  • Hour: ├ś5.0mm



The Importance Of Getting Correct Measurements

In order to find a correct replacement, you will first need to gather a few measurements and information from your current movement. A model number alone does not provide enough information to replace a movement- you will also need to determine the following:

1. Type of movement/hands you are replacing (press fit, euroshaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

  • If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
  • If the hole has two straight sides and a rounded top and bottom, then your movement is a euroshaft movement
  • If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.



 2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your original hands may not be compatible with the replacement movement that you select. It is important that you measure the hand hole dimensions to confirm whether it is a match. If not, you can order replacement hands that will be compatible with your replacement movement. In addition, the total length of the hands are measured from the centre of the hole to the tip, not from end to end.


3. Total Shaft Length Of Your Current Movement



Measure the total shaft length of your old movement by measuring from the face of the movement to the very end of the shaft. This measurement is the entire shaft length when the movement has been removed from the clock. It is important to get accurate measurements especially if your clock has a lens. We also recommend measuring your dial thickness to ensure the replacement movement will be a suitable fit.

4. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.


Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.






SKU 20033644
Model # QT.HTC22.AA-CON
Type Battery Movements
Shaft Length 22mm
Shaft Type Euroshaft
Batteries Required 1 x AA Alkaline Batteries
Motion Continuous Sweep
Calculate Shipping


Standard Watch Shipping - $9.95
Standard Road Freight for watches/small items, FREE over $400 Australia wide
Express Shipping - $12.95
Select for prioritised delivery (fastest postal delivery option, but current circumstances mean we can't guarantee next-business-day delivery at the moment.)
Free pick-up in store - $0.00
Free pick-up from Clock Shop, 194 Main Street, Montville 4560. Mon - Sat 9:30am - 5:00pm, Sun 12:30pm - 5:00pm
Shipping Information

Take advantage of our great shipping rates that includes FREE delivery for all orders over $400*. (*excluding Grandfather Clocks - specialised carriers and insurance is required for all Grandfather Clock deliveries). Read More

Returns

All purchases from Clock Shop also come with our Happiness Guarantee policy - We will happily exchange or refund any product that you are not 100% happy with. To request an exchange or refund, simply contact us within 7 days from the date your item/s arrived. All of our products are quality checked before they are shipped out. If you receive a faulty item from us upon delivery, please contact us immediately at support@clockshop.com.au

Read the fulll returns policy here.


More Great Deals On Sale Now

Gift Music Box Hand Crank Movements - Various Melodies  image

Quick view

Gift Music Box Hand Crank Movements - Various Melodies  image Gift Music Box Hand Crank Movements - Various Melodies  image
On Sale

from $18.00 $10.00

Top
Seller
8.5cm Montville Chalet Wooden Fridge Magnet  image

Quick view

On Sale

$15.00 $14.00

5 Leaf & Bird Battery Carved Kuckulino With Dancers 25cm By TRENKLE image

Quick view

5 Leaf & Bird Battery Carved Kuckulino With Dancers 25cm By TRENKLE image 5 Leaf & Bird Battery Carved Kuckulino With Dancers 25cm By TRENKLE image 5 Leaf & Bird Battery Carved Kuckulino With Dancers 25cm By TRENKLE image 5 Leaf & Bird Battery Carved Kuckulino With Dancers 25cm By TRENKLE image 5 Leaf & Bird Battery Carved Kuckulino With Dancers 25cm By TRENKLE image
On Sale

$165.00 $157.00

8cm Festive Reindeer Decoration image

Quick view

$11.00 $5.50

Last
Chance
13cm Gingerbread Wreath Hanging Decoration image

Quick view

$14.00 $10.50

Last
Chance
5 Leaf & Bird Mechanical Carved Clock Walnut 14cm By TRENKLE image

Quick view

5 Leaf & Bird Mechanical Carved Clock Walnut 14cm By TRENKLE image 5 Leaf & Bird Mechanical Carved Clock Walnut 14cm By TRENKLE image 5 Leaf & Bird Mechanical Carved Clock Walnut 14cm By TRENKLE image 5 Leaf & Bird Mechanical Carved Clock Walnut 14cm By TRENKLE image 5 Leaf & Bird Mechanical Carved Clock Walnut 14cm By TRENKLE image
On Sale

$75.00 $71.00

7.5cm Montville 5 Leaf & Bird Wooden Fridge Magnet image

Quick view

On Sale

$15.00 $14.00

10cm Cool Santa Hanging Decoration image

Quick view

$35.00 $26.25

Last
Chance

Others Also Bought

Hiking Badge- Schwarzwald (Silver) image

Quick view

$5.00

Last
Chance

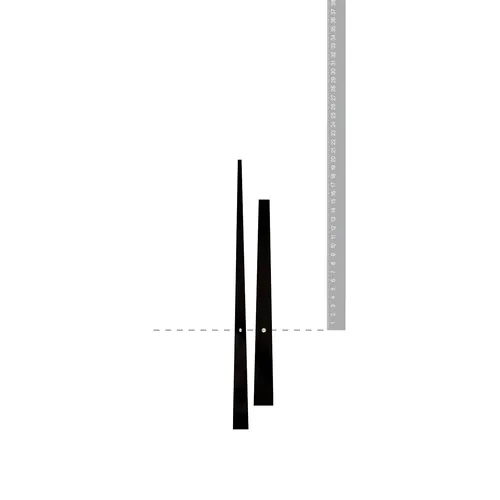

Black Spade Euroshaft Quartz Hands (137mm & 100mm) image

Quick view

$8.50

18cm Walnut Mechanical Skeleton Table Clock By HERMLE image

Quick view

18cm Walnut Mechanical Skeleton Table Clock By HERMLE image 18cm Walnut Mechanical Skeleton Table Clock By HERMLE image 18cm Walnut Mechanical Skeleton Table Clock By HERMLE image 18cm Walnut Mechanical Skeleton Table Clock By HERMLE image 18cm Walnut Mechanical Skeleton Table Clock By HERMLE image

$360.00

Top
Seller
German Euroshaft Step Clock Movement By UTS (16mm Shaft) image

Quick view

German Euroshaft Step Clock Movement By UTS (16mm Shaft) image German Euroshaft Step Clock Movement By UTS (16mm Shaft) image German Euroshaft Step Clock Movement By UTS (16mm Shaft) image German Euroshaft Step Clock Movement By UTS (16mm Shaft) image

$14.00

German Euroshaft Step Clock Movement By UTS (21mm Shaft) image

Quick view

German Euroshaft Step Clock Movement By UTS (21mm Shaft) image German Euroshaft Step Clock Movement By UTS (21mm Shaft) image German Euroshaft Step Clock Movement By UTS (21mm Shaft) image German Euroshaft Step Clock Movement By UTS (21mm Shaft) image

$14.00

Euroshaft Step Clock Movement By TAKANE (13mm Shaft) image

Quick view

Euroshaft Step Clock Movement By TAKANE (13mm Shaft) image Euroshaft Step Clock Movement By TAKANE (13mm Shaft) image Euroshaft Step Clock Movement By TAKANE (13mm Shaft) image Euroshaft Step Clock Movement By TAKANE (13mm Shaft) image

$15.00

High Torque Euroshaft Step Clock Movement By TAKANE (28mm Shaft) image

Quick view

High Torque Euroshaft Step Clock Movement By TAKANE (28mm Shaft) image High Torque Euroshaft Step Clock Movement By TAKANE (28mm Shaft) image High Torque Euroshaft Step Clock Movement By TAKANE (28mm Shaft) image

$90.00

Parts - Pendulum Brass 37mm X 56mm image

Quick view

$48.00


More From This Category

Double Ended Winding Key (3.25mm & 1.75mm) image

Quick view

$21.00

Cuckoo Clock Weight 1000g image

Quick view

$65.00

13cm Gold Clock Insert With Gold Dial By FISCHER image

Quick view

13cm Gold Clock Insert With Gold Dial By FISCHER image

$85.00

Round Arabic Gold 103mm - Quartz Clock Movement  image

Quick view

Round Arabic Gold 103mm - Quartz Clock Movement  image Round Arabic Gold 103mm - Quartz Clock Movement  image

$80.00

Gold Roman Numerals 25mm  image

Quick view

$9.00

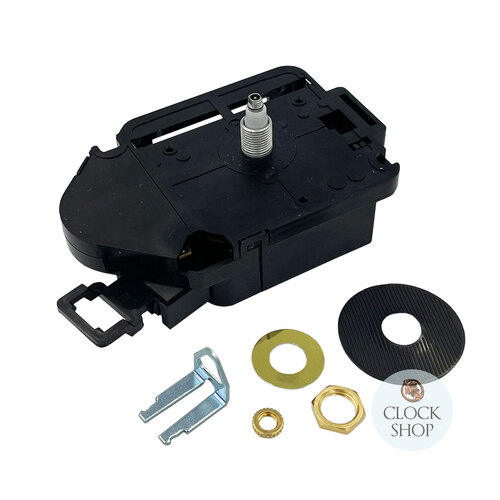

German Euroshaft Pendulum Step Clock Movement (16mm Shaft) image
