Music Box Metal Turntable (19mm)

Music Box Metal Turntable

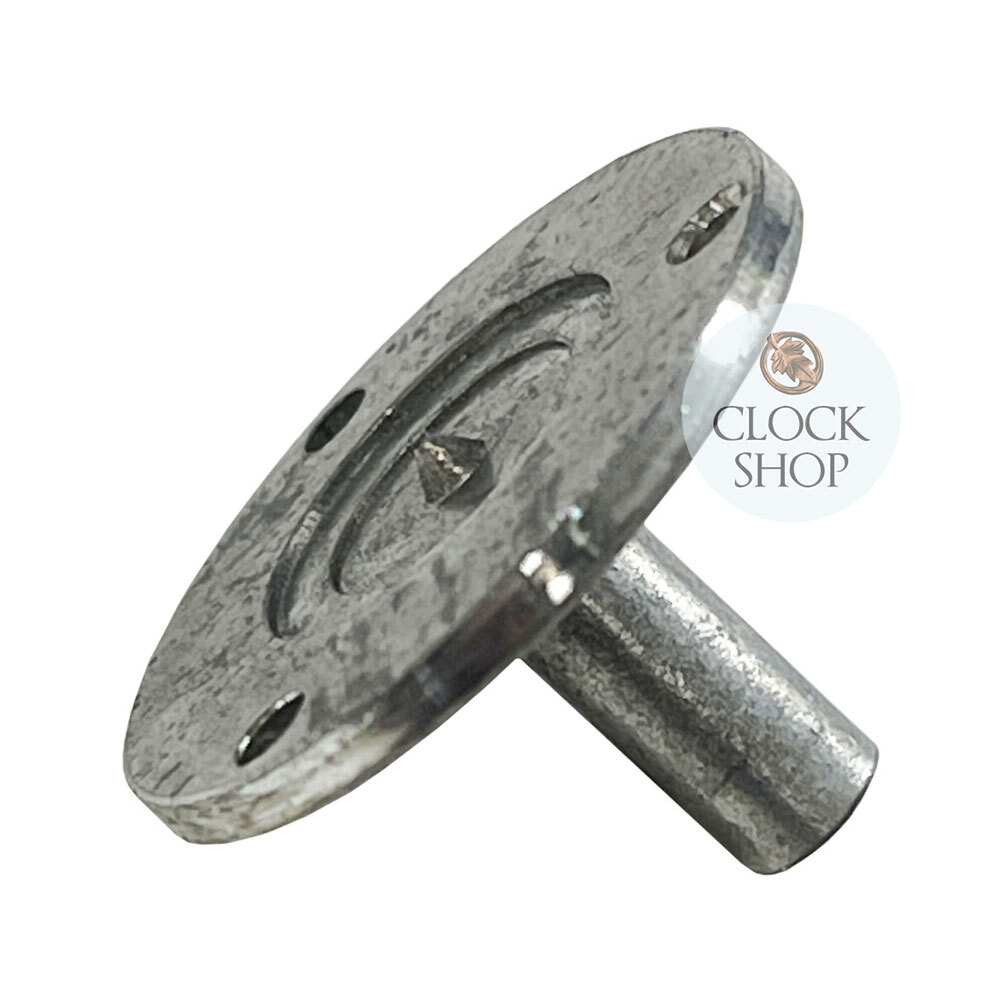

This music box metal turntable is designed for use with full-size wind up 18-note musical movements such as Sankyo and Yun Sheng. It features a left-handed (counter-clockwise) threaded mount and rotates at approximately 4 RPM under no load. With a disc diameter of 24mm, and an overall height of 15mm, it’s ideal for driving lightweight display components or rotating figures.

The turntable includes three countersunk mounting holes for secure attachment.

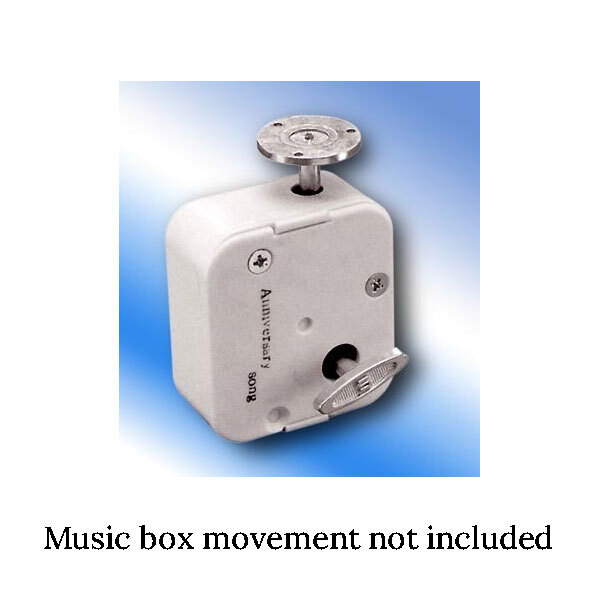

Important Note: This turntable is not compatible with the key shaft located on the bottom of musical movements. It is specifically made to fit the threaded turn shaft and top-mount rotation assembly only. When installing into the side accessory hole of the movement, it must be used with the threaded turn shaft (sold seperately).

Key Features:

• Measures 2.40cm (diameter), 1.4cm (height)
• Features 3 countersunk mounting holes
• Designed for use with full-size 18-note wind-up musical movements such as Sankyo and Yun Sheng
• Left-handed (counter-clockwise) threaded mount
• Rotates at approximately 4 RPM (no load)
• Disc diameter: 24mm
• Overall height: 15mm
• Includes 3 countersunk mounting holes for secure attachment

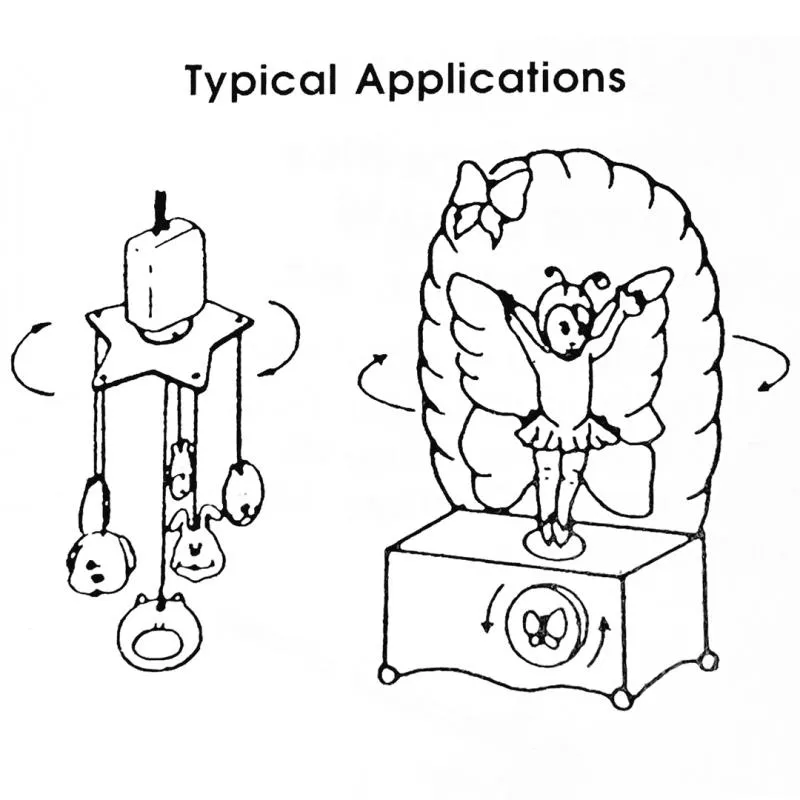

• Ideal for driving lightweight display components or rotating figures
• Not compatible with the key shaft on the bottom of musical movements
• Only fits threaded turn shaft and top-mount rotation assembly
