Black Pointer Press Fit Sweep Quartz Hands (39mm & 28mm)

Press Fit Sweep Hands - Assorted Designs

Please read all of the information in the description below carefully to ensure the hands will be an appropriate fit prior to purchasing.

These Press Fit hands come in a range of designs that are compatible with our Press Fit Sweep Clock Movements, available to view HERE. Please note, these hands are not compatible with our German Press Fit movements.

Important note: You must select the appropriate hands that you require from the drop down menu prior to purchasing. There are a number of options to choose from.

Hand Styles/Sizes Available (Visible From Drop Down Menu)

Black Spade Press Fit Quartz Hands (110mm & 80mm)

Gold Spade Press Fit Quartz Hands (110mm & 80mm)

Black Spade Press Fit Quartz Hands (63mm & 42mm)

Gold Spade Press Fit Quartz Hands (63mm & 42mm)

Black Serpentine Press Fit Quartz Hands (98mm & 68mm)

Gold Serpentine Press Fit Quartz Hands (98mm & 68mm)

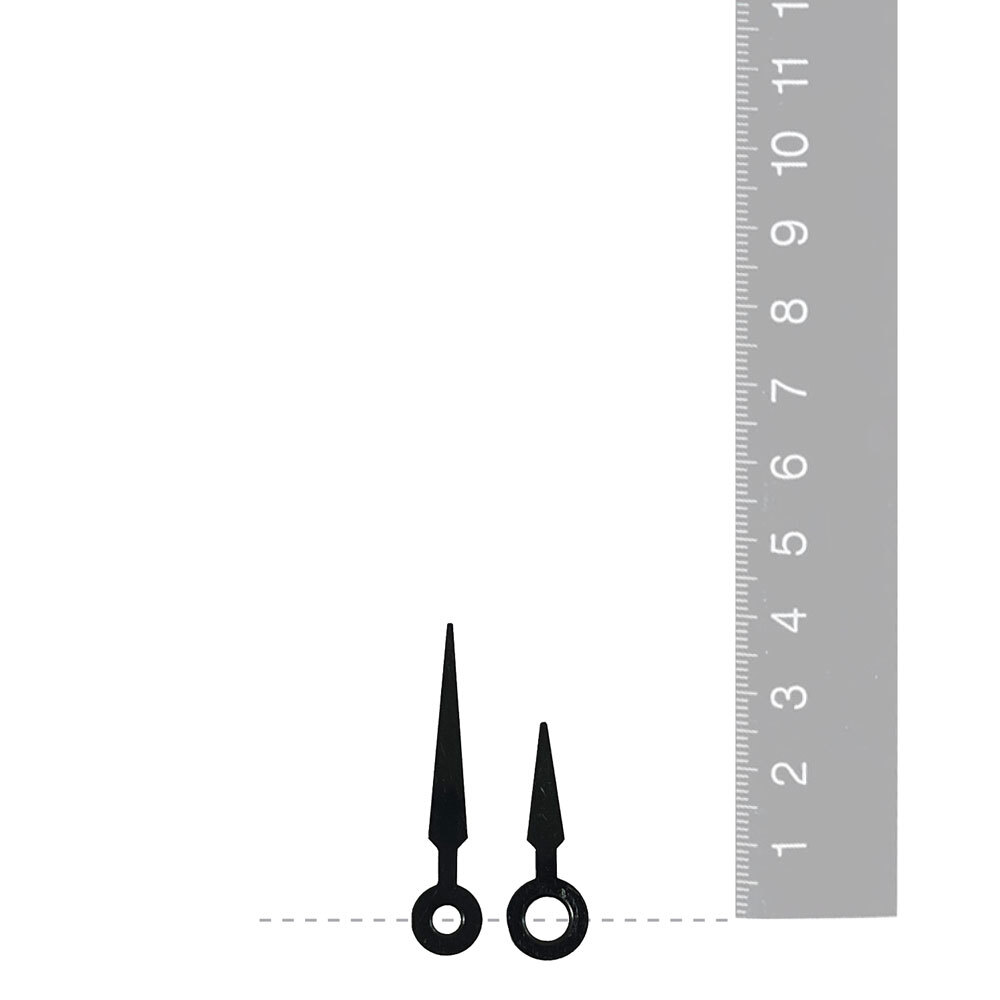

Black Pointer Press Fit Quartz Hands (39mm & 28mm)

Black Pointer Press Fit Quartz Hands (79mm & 53mm)

Gold Pointer Press Fit Quartz Hands (79mm & 53mm)

Black Serpentine Press Fit Quartz Hands (53mm & 41mm)

Gold Serpentine Press Fit Quartz Hands (53mm & 41mm)

Black Serpentine Press Fit Quartz Hands (115mm & 75mm)

Please note: The hand length is measured from the centre hole to the very end of the hand, not from end to end

Important note: We cannot guarantee compatibility between your existing hands/movement, and our hands/movements. To avoid any issues, be sure to gather accurate hand hole measurements, and verify that they match the exact specifications outlined in this description. Please read the entire description thoroughly to ensure all measurements will work with these hands.

What Is The Difference Between Standard Press Fit and German Press Fit Hands?

The main difference between standard press fit and German press fit hands comes from the hand hole dimensions which have slightly different measurements. It is important to measure your existing hand hole dimensions prior to purchasing, to ensure the movement will be a suitable replacement. In addition, the finished appearance between the two movements differs slightly- a German press fit movement uses a collar to secure the movement to a clock (which requires a slightly larger dial hole and thickness), whilst a standard press fit movement instead uses a hex nut and a brass thread.

How To Determine Which Hands You Need- Press Fit, Euroshaft or High Torque

In order to find replacement hands, you will first need to gather a few measurements and information from your current movement/or hands. You will need to determine:

1. What type of fit are your hands? (press fit, euro shaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

• If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
• If the hole has two straight sides and a rounded top and bottom, then your movement is a euro shaft movement
• If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft from the movement with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your replacement hands need to be compatible with either your original movement, or the replacement movement that you select. It is important that you measure the hand hole dimensions of your original hands to confirm whether it is a match. If these aren't available, you can measure the shaft dimensions of your original movement. In addition, the total length of the hands are measured from the centre of the hole to the tip, not from end to end.

3. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.

Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.
