Customisable Press Fit Sweep Clock Movement Kit

SKU: CCSWEEPQMKIT


$21.50
In Stock


Customise Your Purchase

Press Fit Sweep Clock Movement- Assorted Shaft Lengths

Press Fit Sweep Clock Movement- Assorted Shaft Len

$10.00

QTY
Press Fit Quartz Hands- Assorted Designs

Press Fit Quartz Hands- Assorted Designs

$7.00

QTY
Press Fit Sweep Seconds Hand- Assorted Designs

Press Fit Sweep Seconds Hand- Assorted Designs

$2.50

QTY
Metal Clock Hanger

Metal Clock Hanger

$2.00

QTY

A Customisable Clock Repair Kit


Fully customise the perfect clock repair kit you need by selecting each component! This complete press fit clock repair kit includes a sweeping (non-ticking) press fit movement, compatible press fit hands, fittings and a hanger all as available options. Shop with confidence knowing that all components of this kit will work together perfectly, taking out the hassle of trying to replace a movement whilst keeping existing hands that might not fit. All you need to do is add each item that you require individually to your kit from the drop down menus, add the quantity, and build as necessary. As this is a press fit clock movement kit, the selected hands will press onto the shaft, and the seconds hand will sweep continuously around the dial. Please note, you do not need to add all of the items available- for example if you do not require a seconds hand, simply do not select this as an option and leave the quantity as 0.

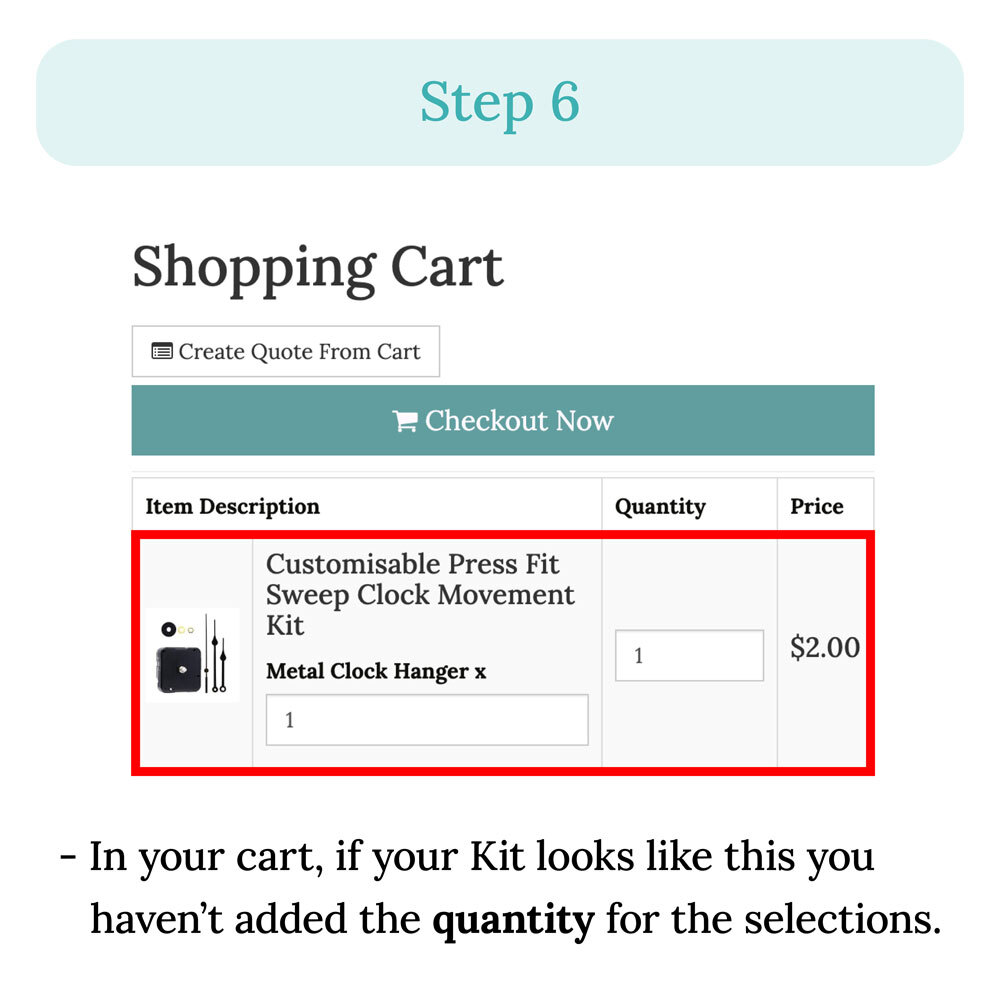

Important note: The individual items in the set are not included by default. You must select the items required, including movement & hands from their respective drop down menus, as well as the quantity required.

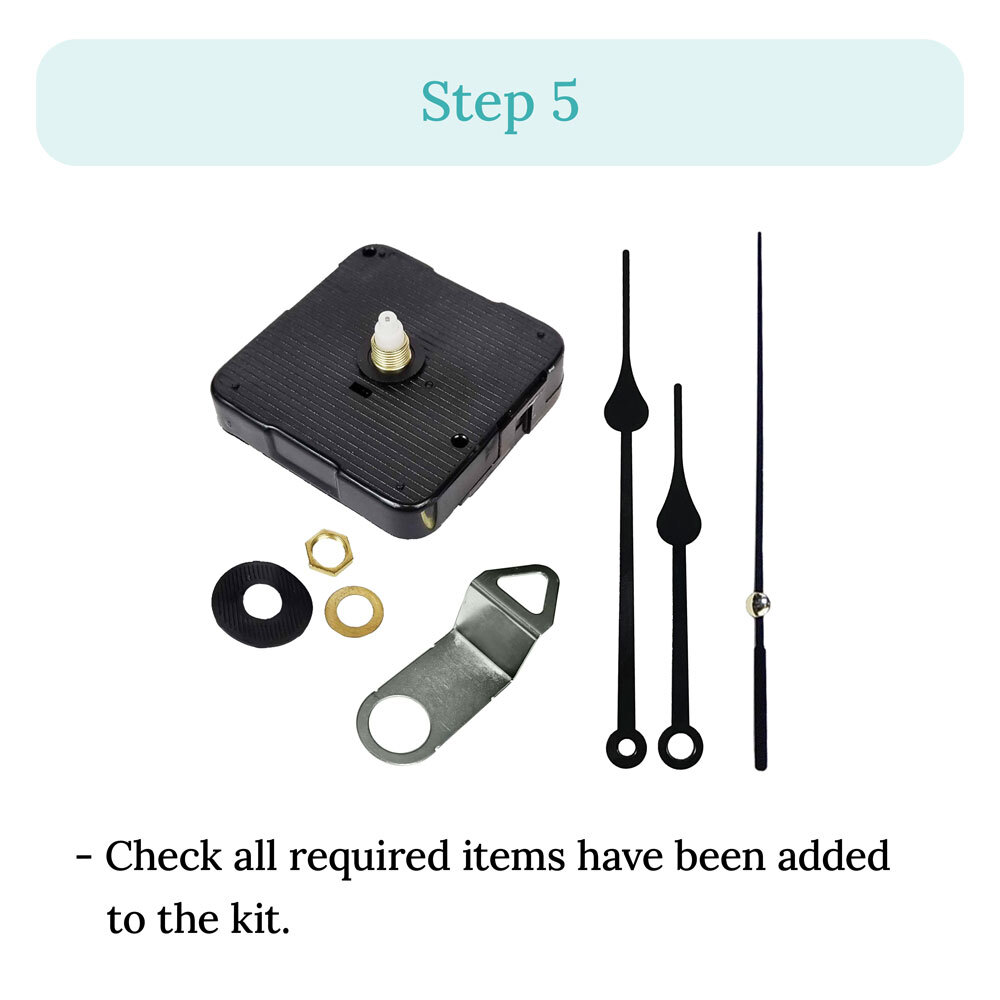

Kit Includes (All Items Optional):

1 x Continuous sweep/non-ticking press fit movement- available in assorted shaft lengths (more information below)

Movement measures 56 x 56 x 16mm (not including shaft length)

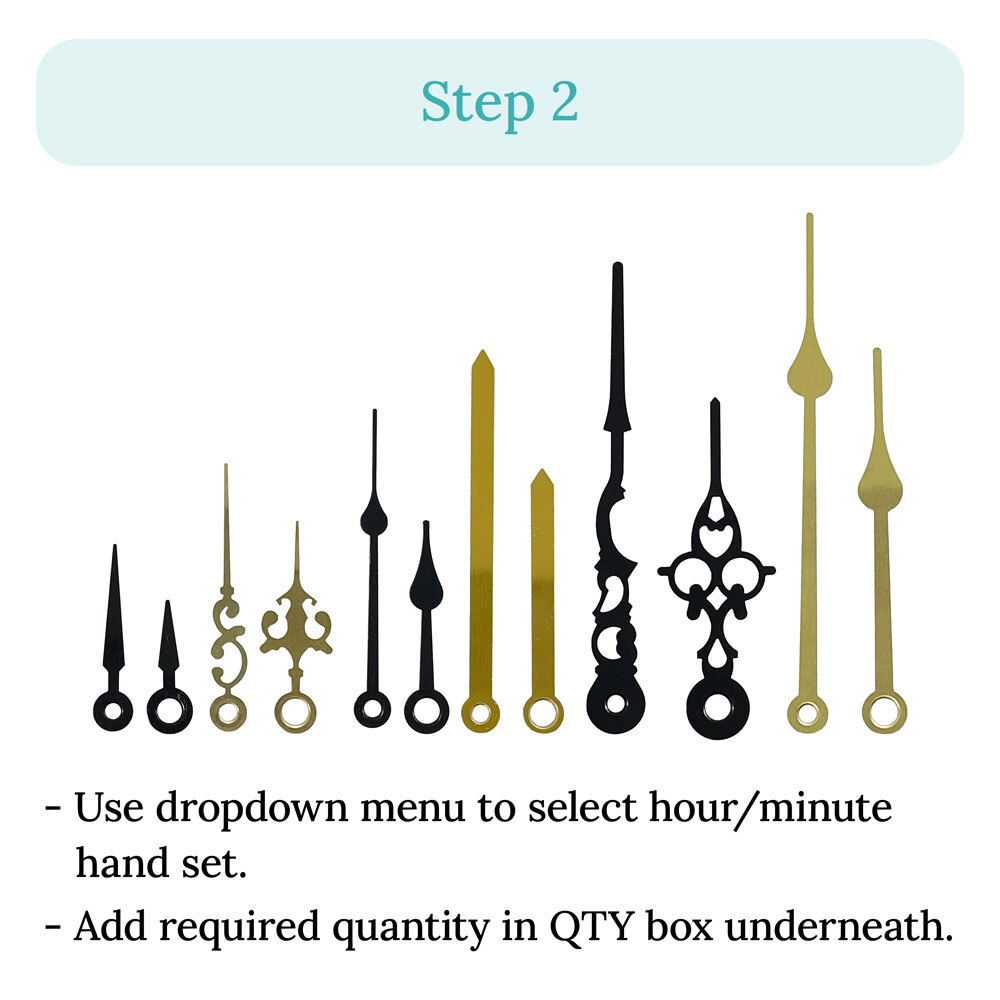

1 x set hands (press fit)- available in assorted sizes & styles

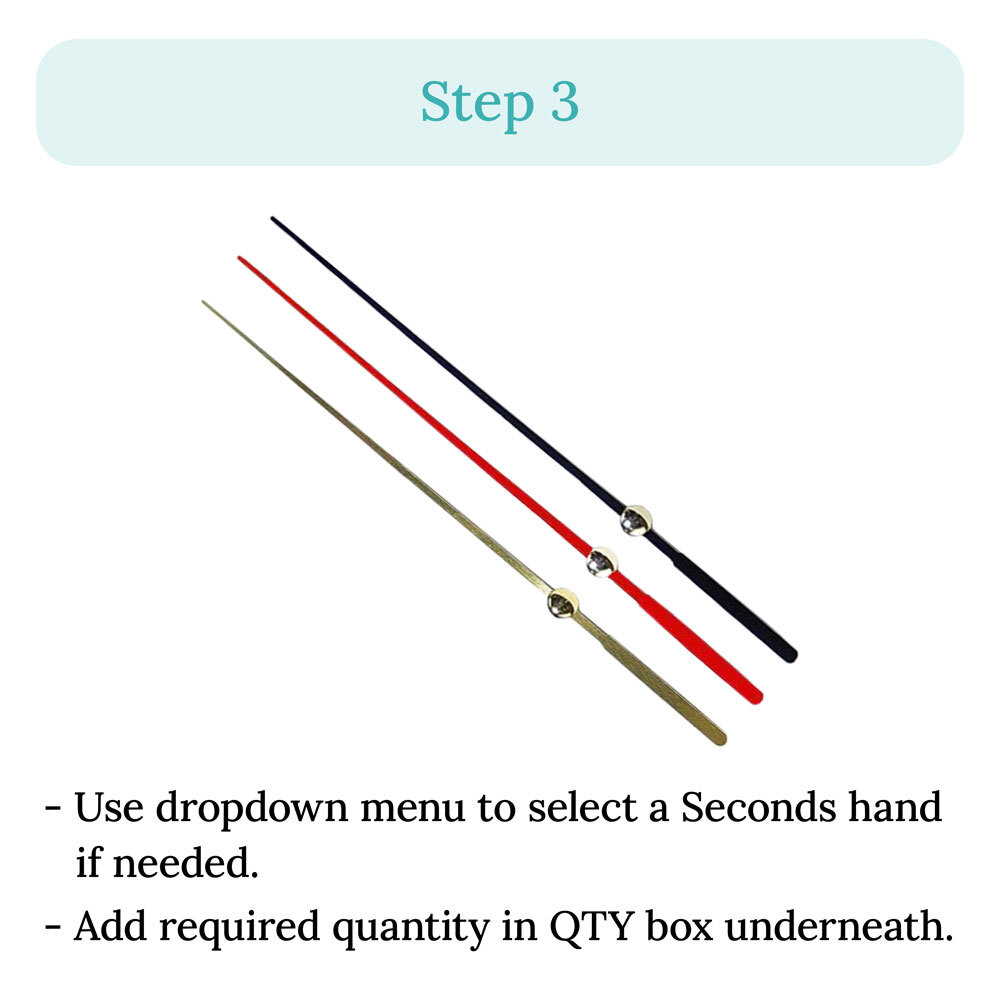

1 x seconds hand (press fit) - available in assorted sizes & styles

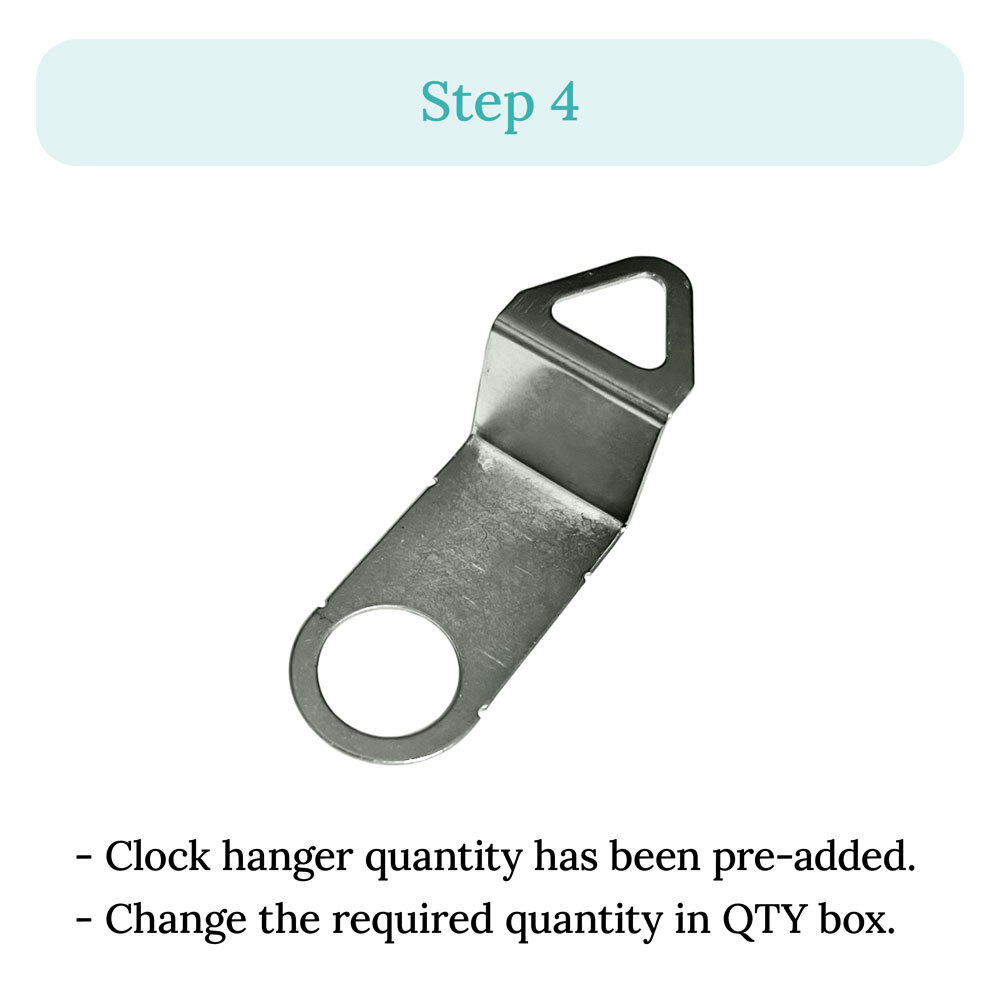

1 x Clock hanger

1 x Pack of fittings (rubber washer, brass washer, hex nut)

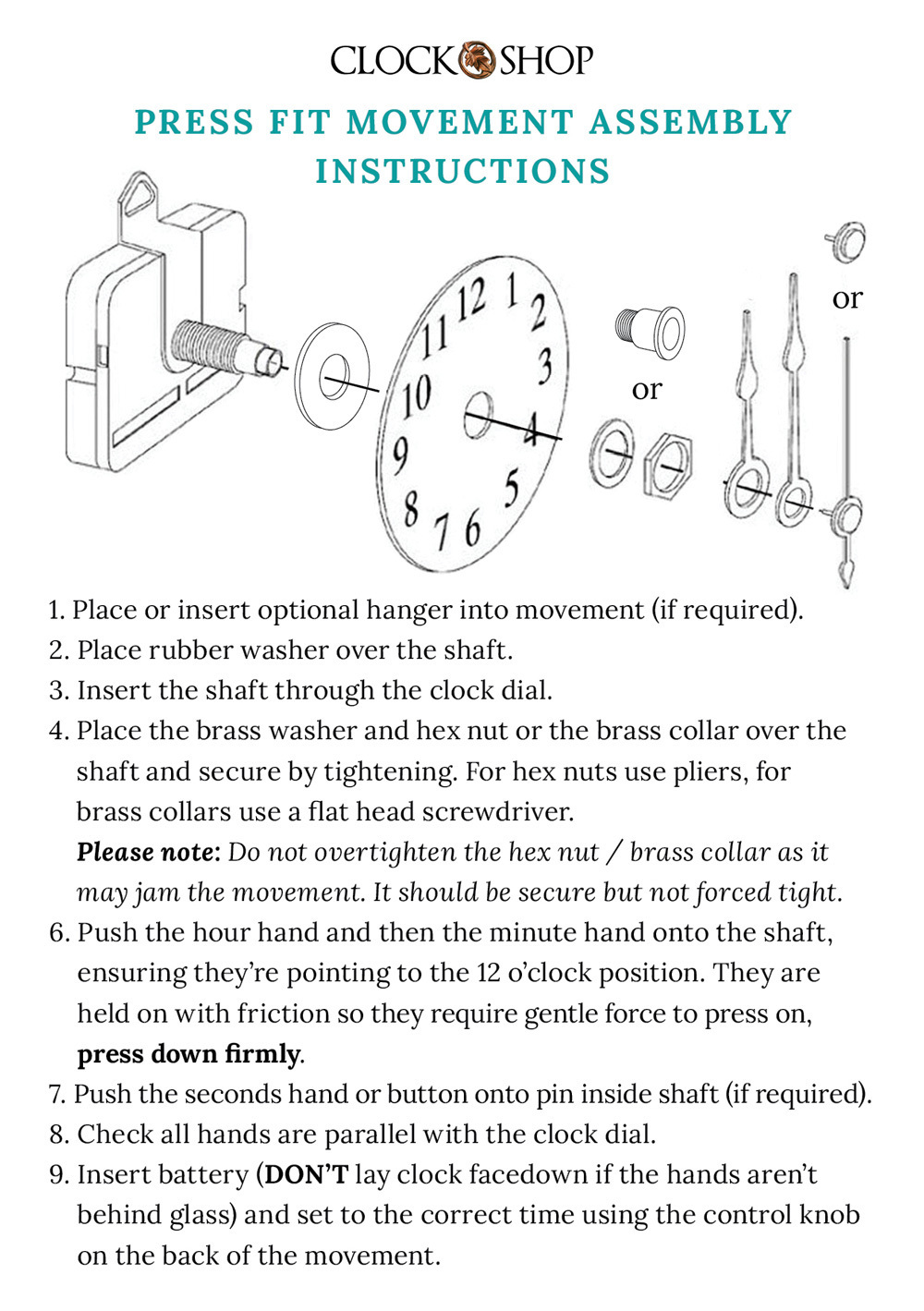

1 x Assembly instructions

Requires 1 x AA Alkaline battery (or LR6 Alkaline), not included.

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.

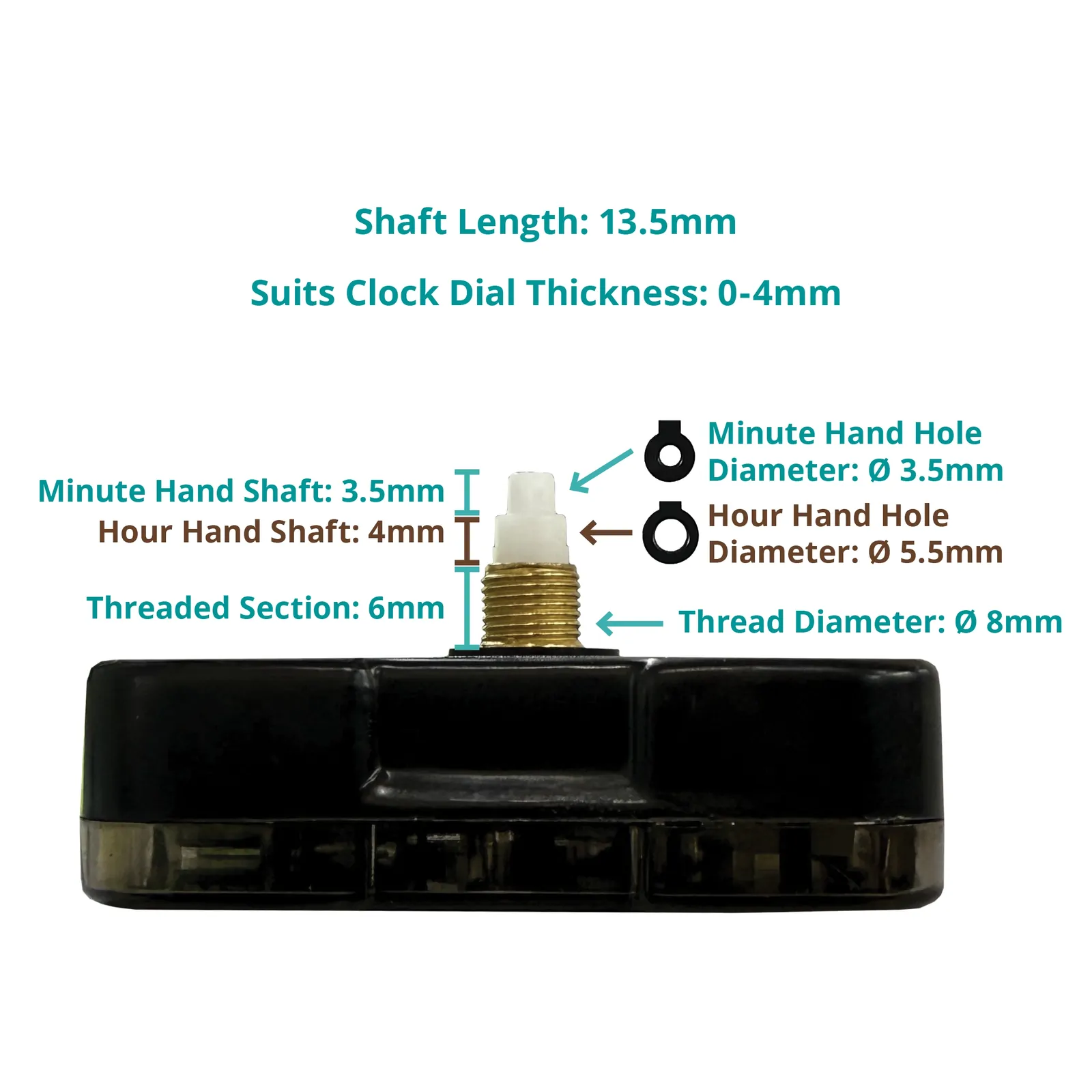

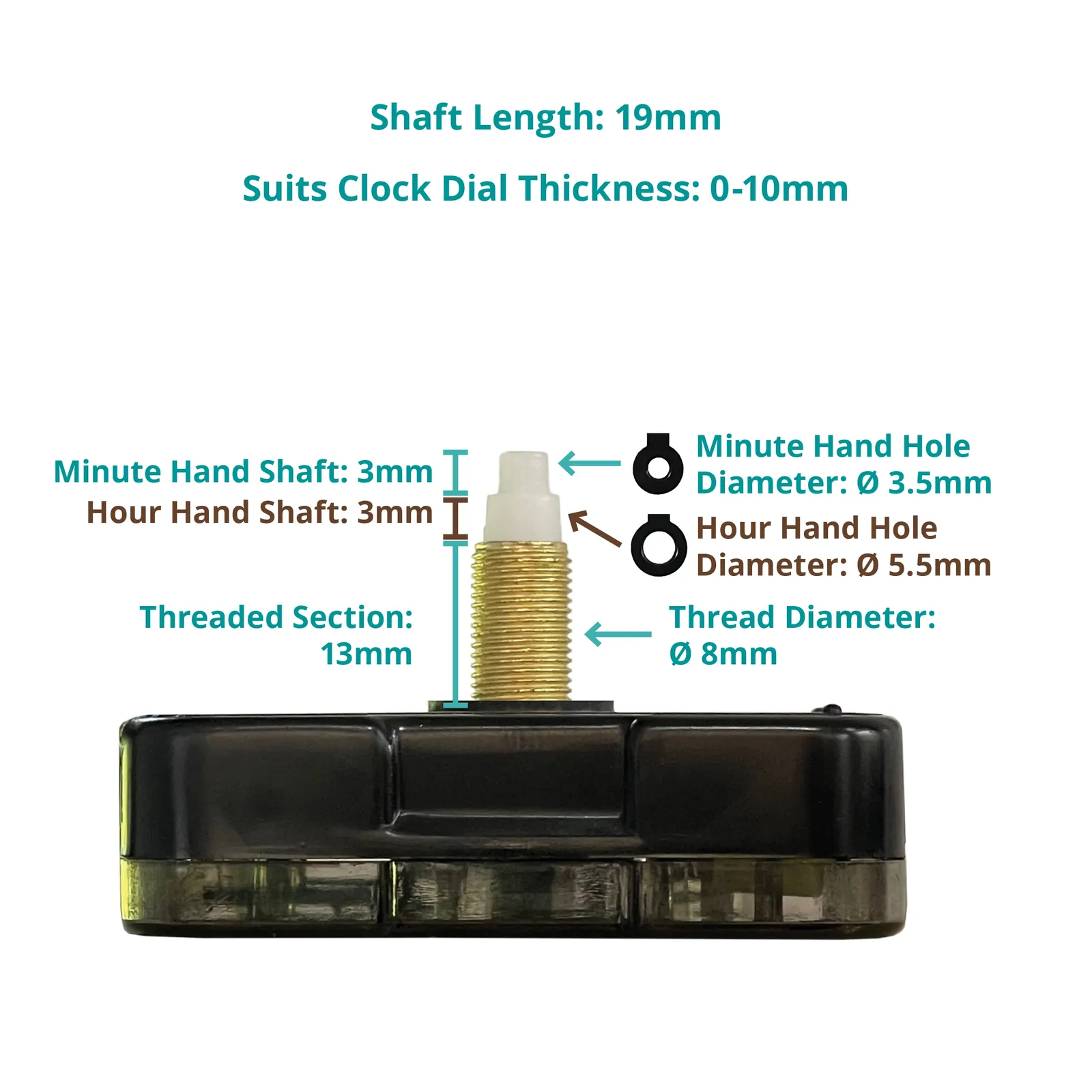

Hand Hole Dimensions (Collet)

  • Minute: 3.5mm
  • Hour: Ø5.5mm

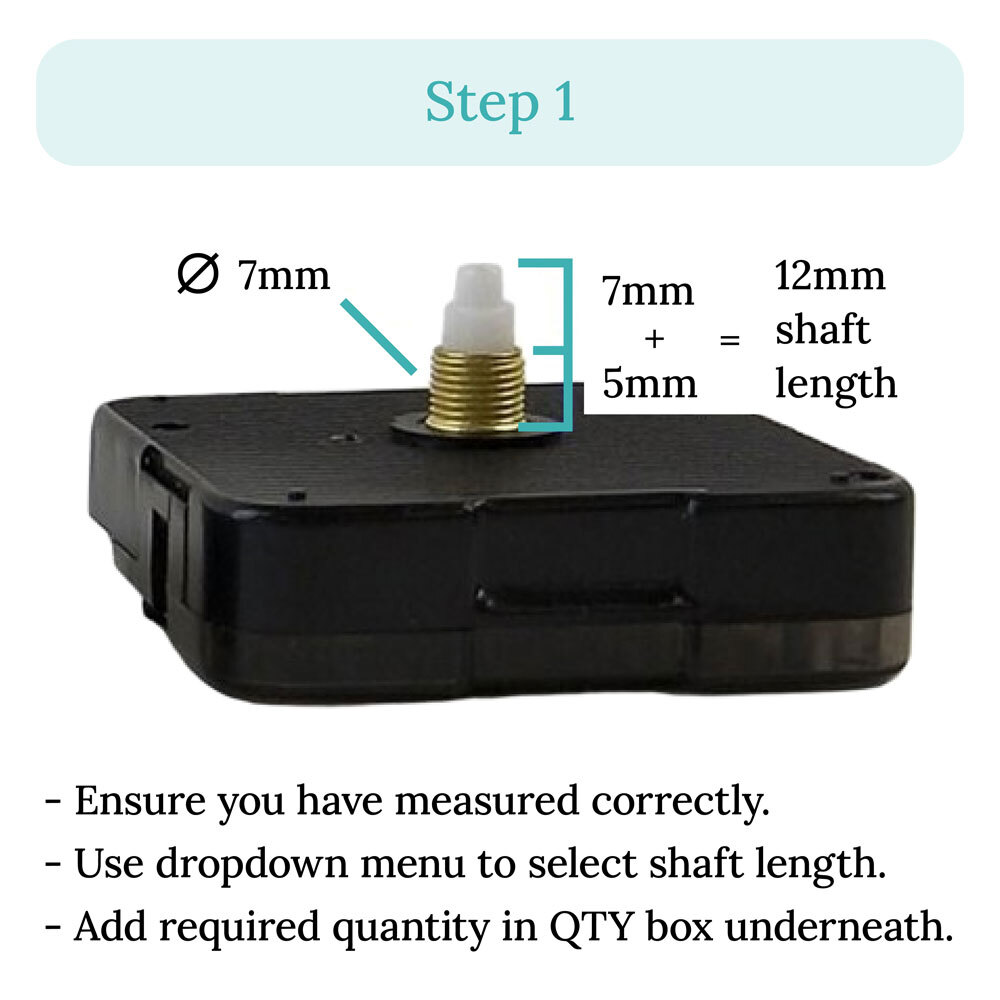

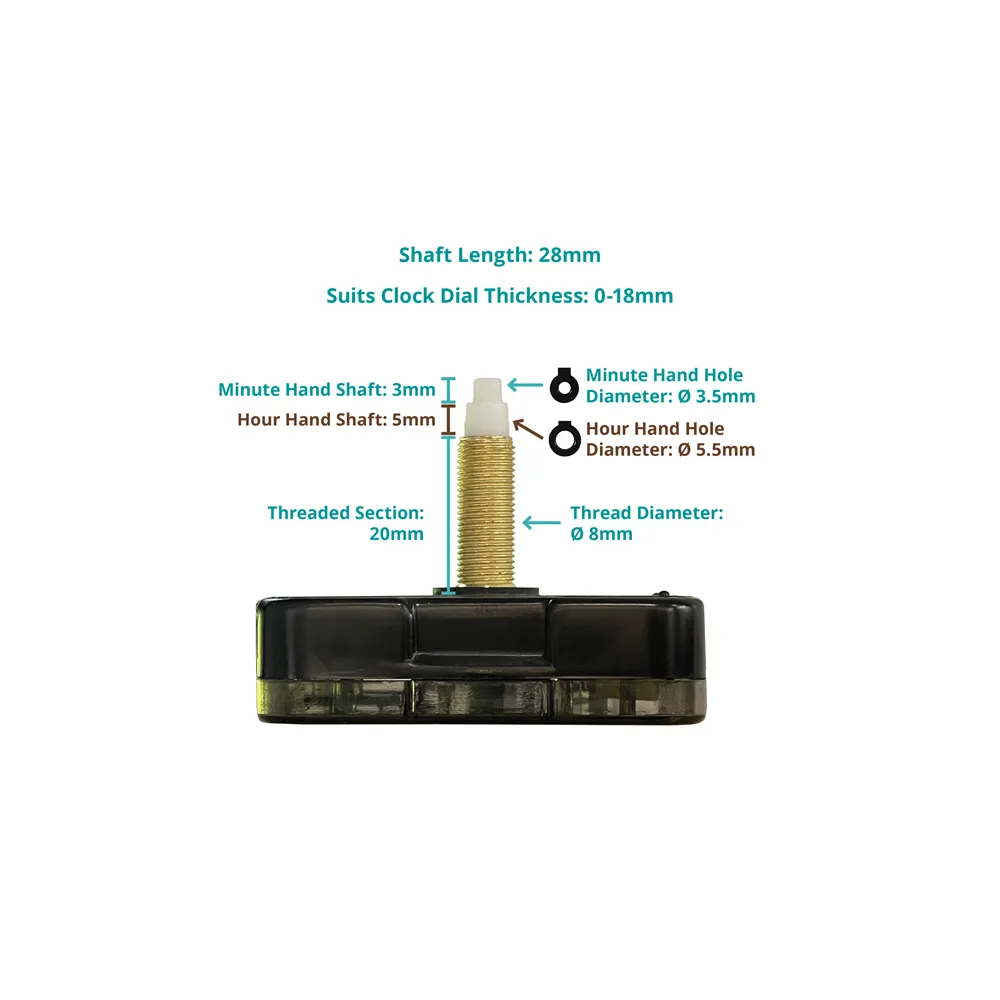

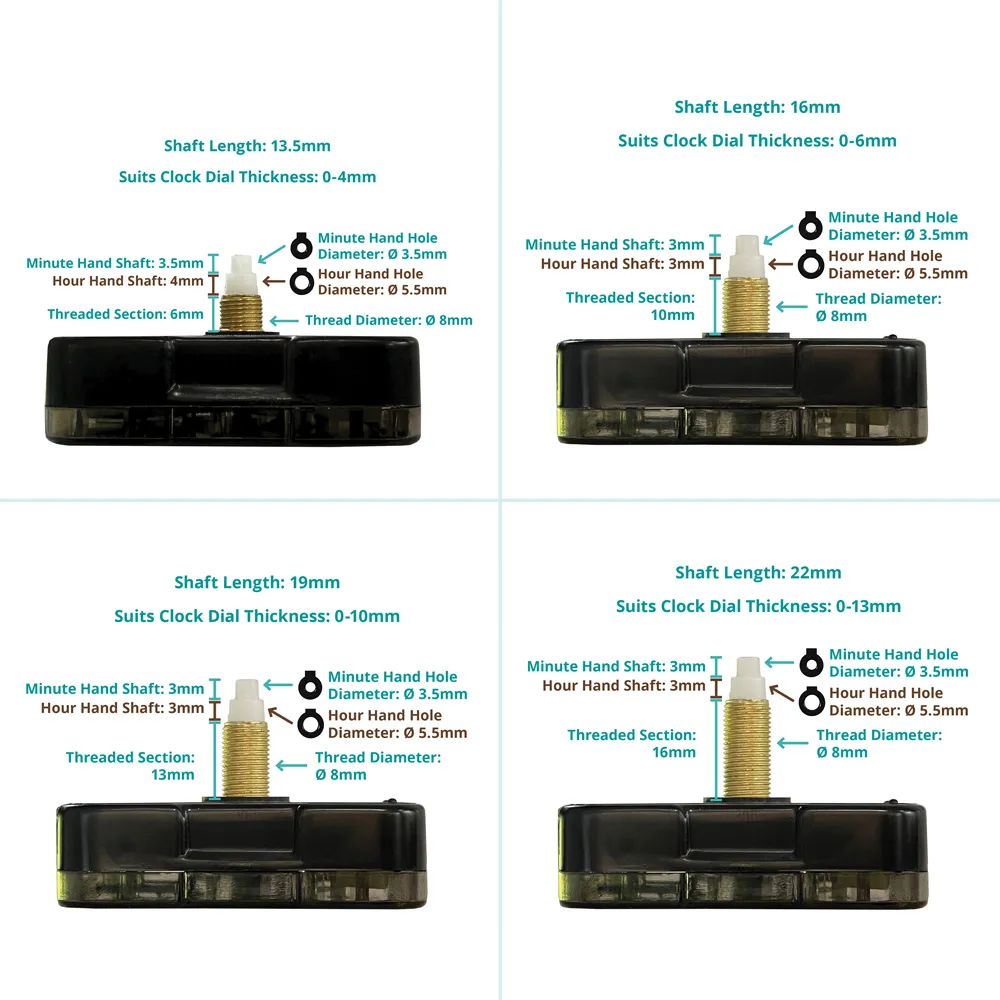

Please refer to the following guide to choose the most accurate shaft length:

12mm shaft suits dials 0-3mm thick

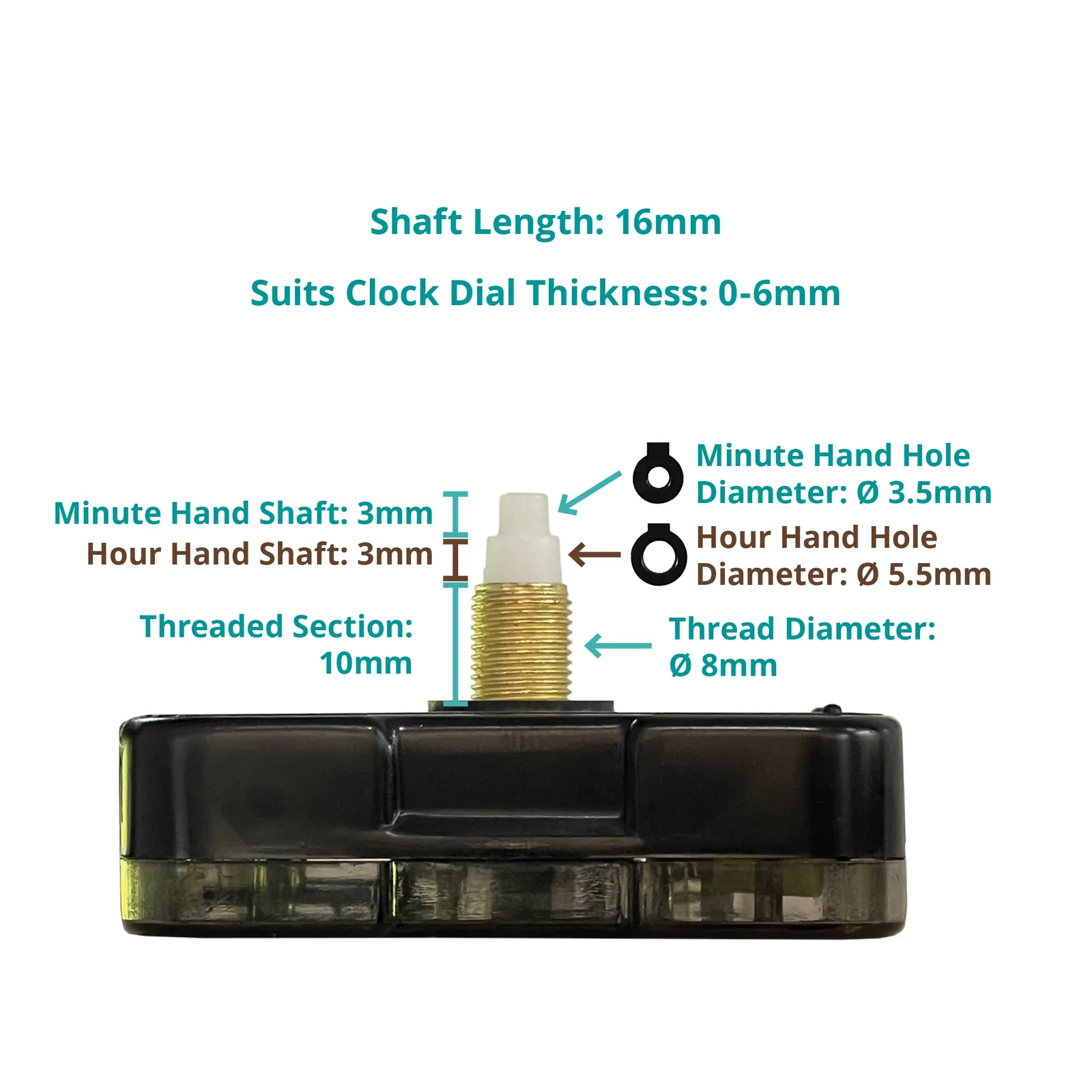

16mm shaft suits dials 0-6mm thick
19mm shaft suits dials 0-10mm thick
22mm shaft suits dials 0-13mm thick
28mm shaft suits dials 0-18mm thick



What Is The Difference Between A Standard Press Fit and A German Press Fit Movement?

The main difference between a standard press fit movement and a German press fit movement comes from the hand hole dimensions which have slightly different measurements. It is important to measure your existing hand hole dimensions prior to purchasing, to ensure the movement will be a suitable replacement. In addition, the finished appearance between the two movements differs slightly- a German press fit movement uses a centre fixing nut to secure the movement to a clock (which requires a slightly larger dial hole and thickness), whilst a standard press fit movement instead uses a hex nut and a brass thread. Please be sure to check the diameter of your dial hole and hand hole dimensions prior to purchasing to ensure you select the most suitable movement.



The Importance Of Getting Correct Measurements

In order to find a correct replacement, you will first need to gather a few measurements and information from your current movement. A model number alone does not provide enough information to replace a movement- you will also need to determine the following:

1. Type of movement/hands you are replacing (press fit, euro shaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

  • If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
  • If the hole has two straight sides and a rounded top and bottom, then your movement is a euro shaft movement
  • If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your original hands may not be compatible with the replacement movement that you select. It is important that you measure the hand hole dimensions to confirm whether it is a match. If not, you can order replacement hands that will be compatible with your replacement movement.


3. Total Shaft Length Of Your Current Movement

Measure the total shaft length of your old movement by measuring from the face of the movement to the very end of the shaft. This measurement is NOT just the threaded part of the shaft, it is the entire shaft. It is important to get accurate measurements especially if your clock had a lens. We also recommend measuring your dial thickness to ensure the replacement movement will be a suitable fit.

4. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.


Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.






SKU CCSWEEPQMKIT
Batteries Required 1 x AA Alkaline Batteries
Motion Continuous Sweep
Shaft Type Press Fit
