Press Fit Sweep Clock Movement Kit- Gold Spade & Black Seconds Hands (16mm Shaft)

SKU: SWEEPKIT_GLDSPADE_16


$23.50
In Stock

Finance Options:

Make 4 interest-free payments of $5.88 fortnightly and receive your order now.
Guaranteed Safe and Secure Checkout

A Complete Clock Repair Kit

This complete press fit clock repair kit includes a sweeping (non-ticking) press fit movement, compatible press fit hands, fittings and a hanger. Shop with confidence knowing that all components of this kit will work together perfectly, taking out the hassle of trying to replace a movement whilst keeping existing hands that might not fit.

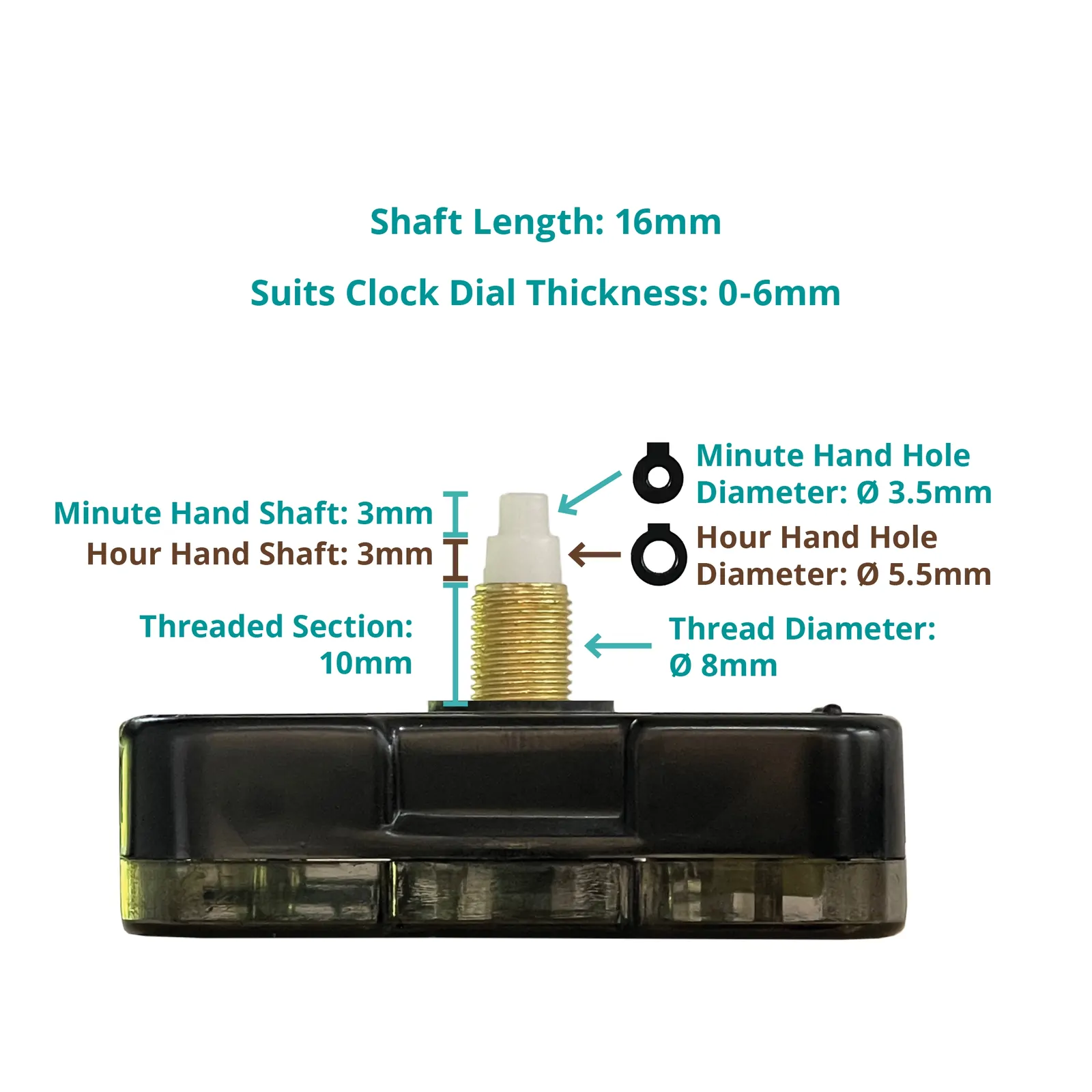

The press fit movement in this kit has a total shaft length of 16mm, and is compatible with clocks that have a dial thickness between 0-6mm. The hands included in this kit will easily press onto the shaft, and the seconds hand will sweep continuously around the dial.

Kit Includes:

1 x Continuous sweep/non-ticking press fit movement (16mm shaft length, suits clocks with a dial thickness 0-6mm)

Movement measures 56 x 56 x 16mm (not including shaft length)

1 x Gold spade hour hand (80mm length) (press fit)

1 x Gold spade minute hand (110mm length) (press fit)

1 x Black seconds hand (80mm length) (press fit)

1 x Clock hanger

1 x Pack of fittings (rubber washer, brass washer, hex nut)

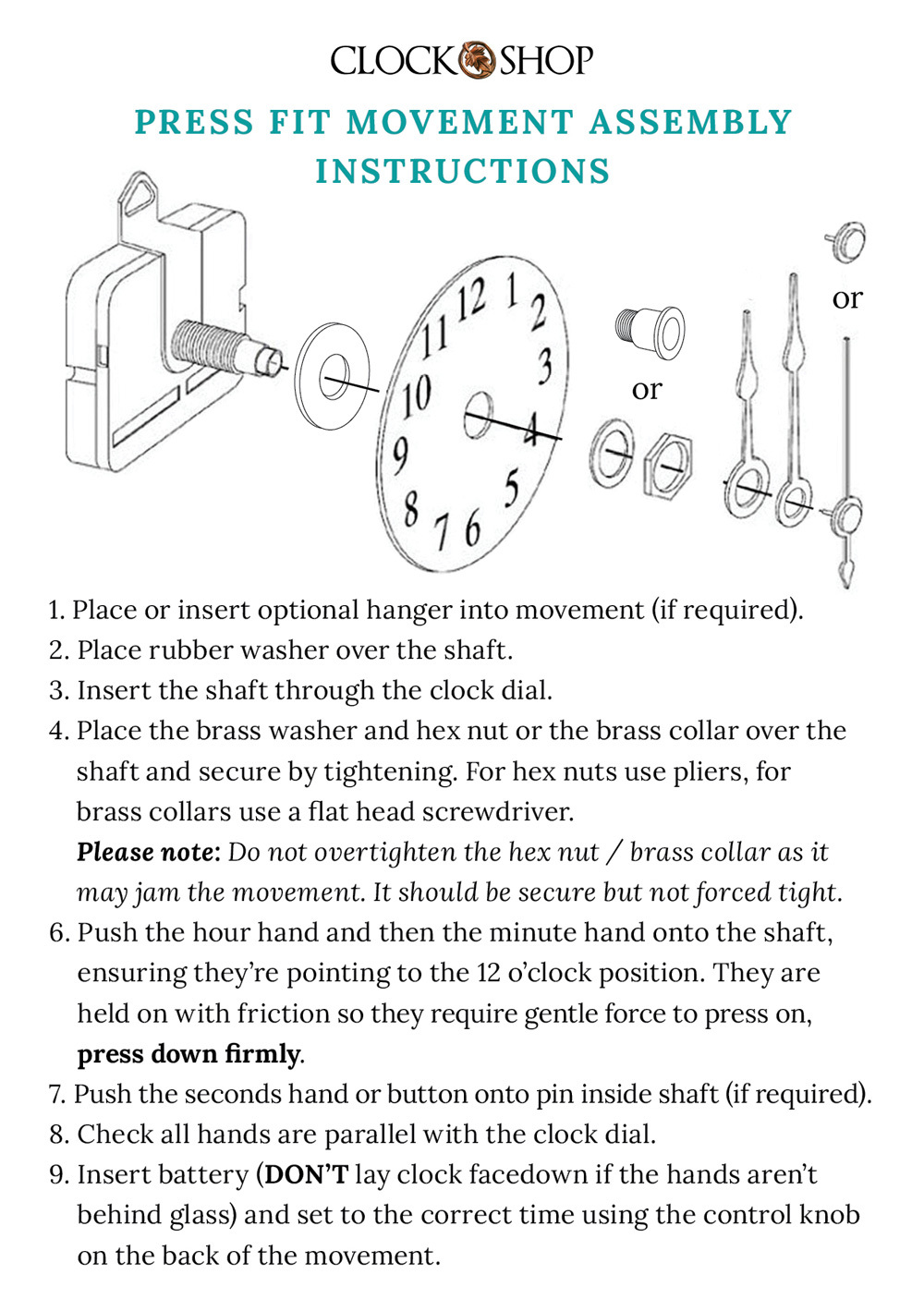

1 x Assembly instructions

Requires 1 x AA Alkaline battery (or LR6 Alkaline), not included.

We recommend changing your movement battery once a year using a high quality alkaline battery, such as Duracell or Panasonic.



Hand Hole Dimensions (Collet)

  • Minute: 3.5mm
  • Hour: Ø5.5mm



The Importance Of Getting Correct Measurements

In order to find a correct replacement, you will first need to gather a few measurements and information from your current movement. A model number alone does not provide enough information to replace a movement- you will also need to determine the following:

1. Type of movement/hands you are replacing (press fit, euro shaft or high torque)

Your current minute hand will be able to easily indicate what type of movement you have. Simply examine the hole in your minute hand.

  • If it is round or has a hexagonal looking eyelet, and if the hand pushes onto the shaft then your movement is a press fit movement
  • If the hole has two straight sides and a rounded top and bottom, then your movement is a euro shaft movement
  • If your minute hand is over 160mm in length then we strongly recommend that you use a high torque movement

Please note, your minute hand hole should be visible. If there is anything protruding from your original minute hand then you may have removed the minute shaft with the hand by accident. To separate this shaft from the minute hand you will need to unscrew the hand nut on the front of the hand.

2. Hand Hole Dimensions (Shaft Diameter Of Hands)

As the shaft diameter for all hands varies significantly, your original hands may not be compatible with the replacement movement that you select. It is important that you measure the hand hole dimensions to confirm whether it is a match. If not, you can order replacement hands that will be compatible with your replacement movement. In addition, the total length of the hands are measured from the centre of the hole to the tip, not from end to end.


3. Total Shaft Length Of Your Current Movement

Measure the total shaft length of your old movement by measuring from the face of the movement to the very end of the shaft. This measurement is NOT just the threaded part of the shaft, it is the entire shaft. It is important to get accurate measurements especially if your clock had a lens. We also recommend measuring your dial thickness to ensure the replacement movement will be a suitable fit.

4. Follow Our Guide

For more detailed information on how to get these measurements, we have created an easy to follow guide (with pictures) and an additional video link which you can view here: Step-By-Step DIY Clock Movement Replacement Guide

Please note, it is very important that you have gathered this information correctly prior to purchasing.


Disclaimer: The information provided serves as a guide only and may not be specific or true for every type of clock. Clock Shop is not responsible for any alterations or damages which may be made from the information provided, and customer discretion is always advised.






SKU SWEEPKIT_GLDSPADE_16
Shaft Length 16mm
Batteries Required 1 x AA Alkaline Batteries
Hand Style Spade
Shaft Type Press Fit
Motion Continuous Sweep
